ERP business process mapping is the practice of visually documenting how workflows run now, and how they should run once a new system is in place. It's for any business evaluating, implementing, or upgrading an ERP system, and it directly affects requirements accuracy, configuration quality, and whether employees actually use the new system.
Too often, mapping gets treated as a checkbox before the "real" work of configuration begins. This article covers what ERP process mapping is, why it matters, how it works, and when to apply it.
TL;DR
- ERP process mapping documents as-is and to-be workflows before any configuration starts.
- Skipping this step leads to mismatched configurations and expensive post-go-live fixes.

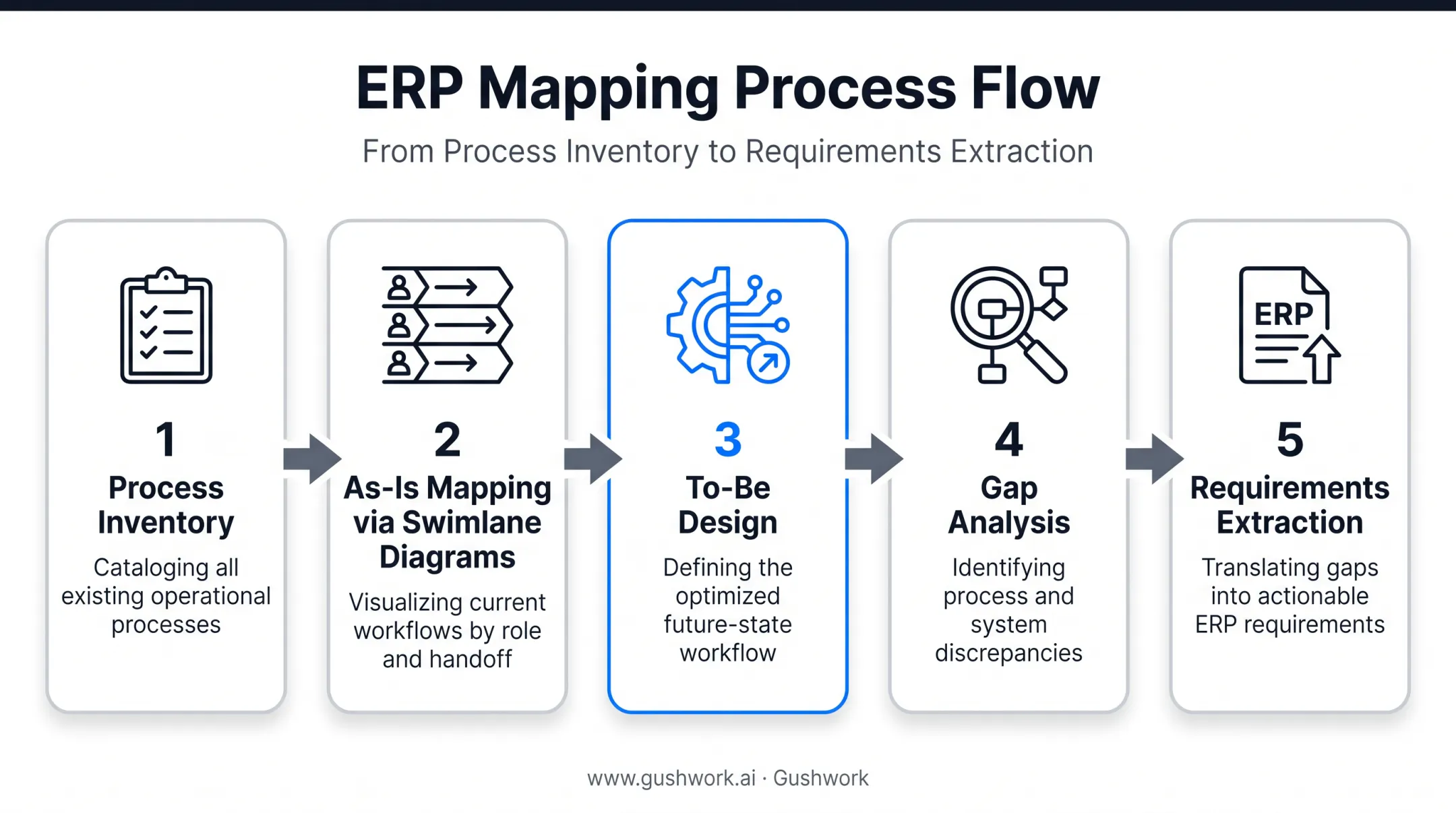

- Core flow: process inventory → as-is mapping → to-be design → gap analysis → requirements.
- Standard formats: L1/L2/L3 mapping levels and swimlane diagrams.
- Good maps don't retire after go-live — they become living documentation.
What Is ERP Business Process Mapping?
ERP business process mapping visually documents the workflows, roles, decisions, data, and systems an ERP must support. The output is a shared reference, one that ties business requirements directly to configuration, testing scripts, and training materials.
This differs from general business process mapping in one key way: everything here connects to a specific system decision. You're not mapping a workflow for its own sake; you're mapping it to answer "what should this ERP do, and how do we prove it works?"
Mapping also differs from process modeling. Mapping documents how work happens; modeling simulates or runs it inside the system.
- Map: a swimlane diagram of your procure-to-pay process
- Model: a configured ERP approval workflow that routes purchase orders
Mapping comes first.
Why ERP Process Mapping Is Critical Before Implementation
Panorama Consulting's 2026 ERP Report found that more than a quarter of organizations went over budget, and almost a quarter went over schedule, on a median 9-month project.
The report points to unclear process ownership, poor user adoption, and lack of strategic alignment as recurring issues — exactly the gaps mapping is designed to close.
Businesses need mapping to get clarity on:
- Approval hierarchies (who signs off, and under what dollar threshold)
- Handoffs between departments (where work stalls today)
- Compliance and audit requirements baked into current steps
- Exception handling: cases that don't follow the standard path
Without mapping, teams configure based on assumptions. That leads to mismatched module setups, missed functionality that only surfaces during user acceptance testing, and rework that's far more expensive post-go-live than during design.
Major ERP platforms treat mapping as a formal step, not a nice-to-have:
- SAP includes business-process analysis and mapping as a formal Business Blueprint phase
- Microsoft Dynamics 365 guidance calls for a process catalog before to-be design
- Oracle follows the same sequence: identify processes, map requirements, then configure
How ERP Business Process Mapping Works (Conceptual Flow)

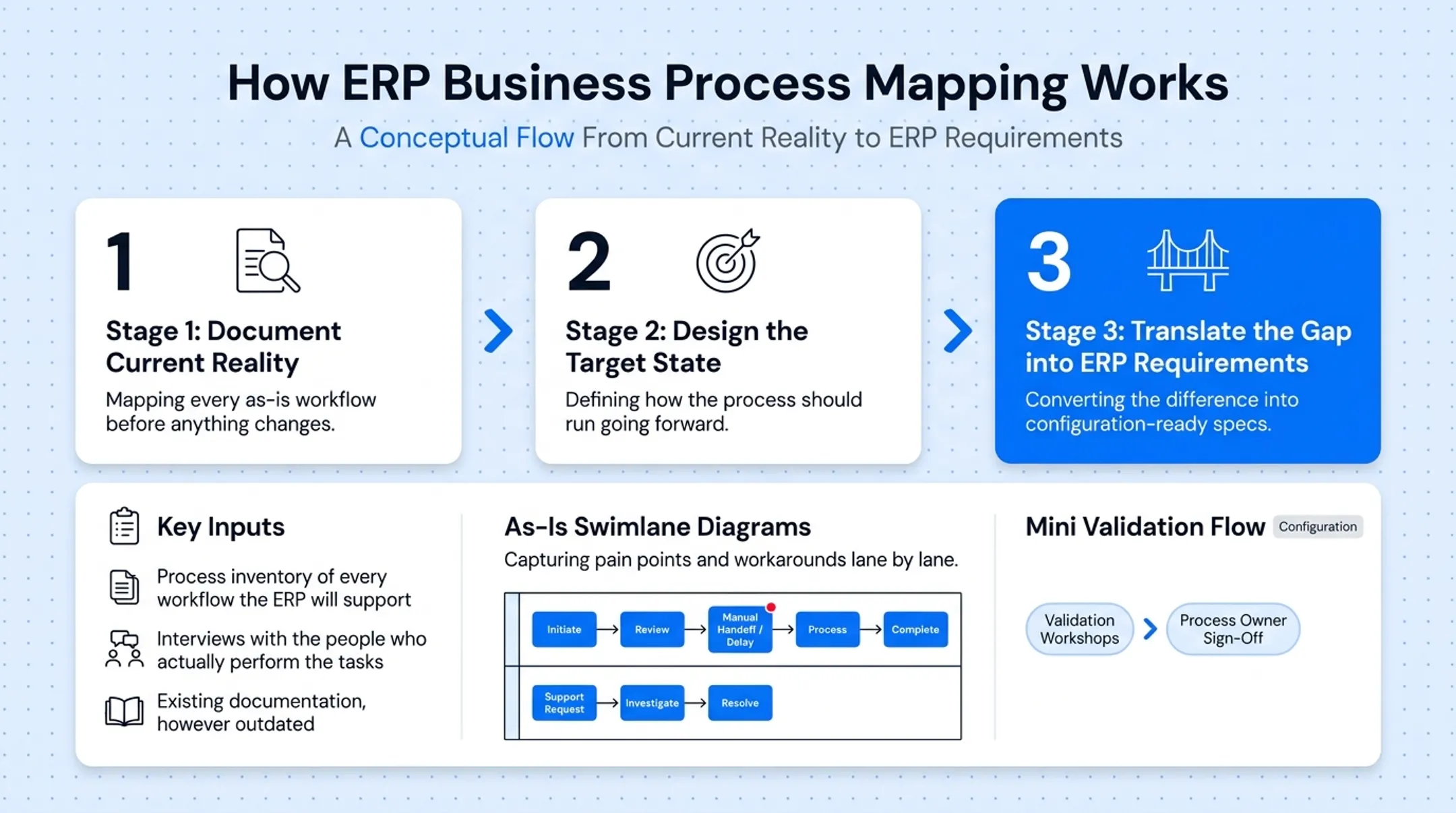

Mapping moves through three stages: document current reality, design the target state, and translate the gap into ERP requirements.
Key inputs include:
- A process inventory of every workflow the ERP will support
- Interviews with the people who actually perform the tasks, not just their managers
- Existing documentation, however outdated it might be
Swimlane diagrams capture the as-is state along with pain points and workarounds. Validation workshops with process participants follow, and process owners formally sign off before anything moves to configuration.
Step 1: Build the Process Inventory
Teams list every business process the ERP will support, organized by module — finance, HR, operations, and so on. They scope by module first, then break each module into individual processes worth mapping in detail. Not every process needs the same depth of documentation; prioritize based on complexity and risk.
Step 2: Document the As-Is State
Map current workflows exactly as performed — including informal shortcuts, workarounds, and undocumented exceptions. Swimlane diagrams work well here because they organize steps by role, which makes gaps and bottlenecks visible immediately.
Skipping this step is a common mistake. Teams often document the process as it's supposed to work on paper, missing the manual workaround an employee uses every single week.

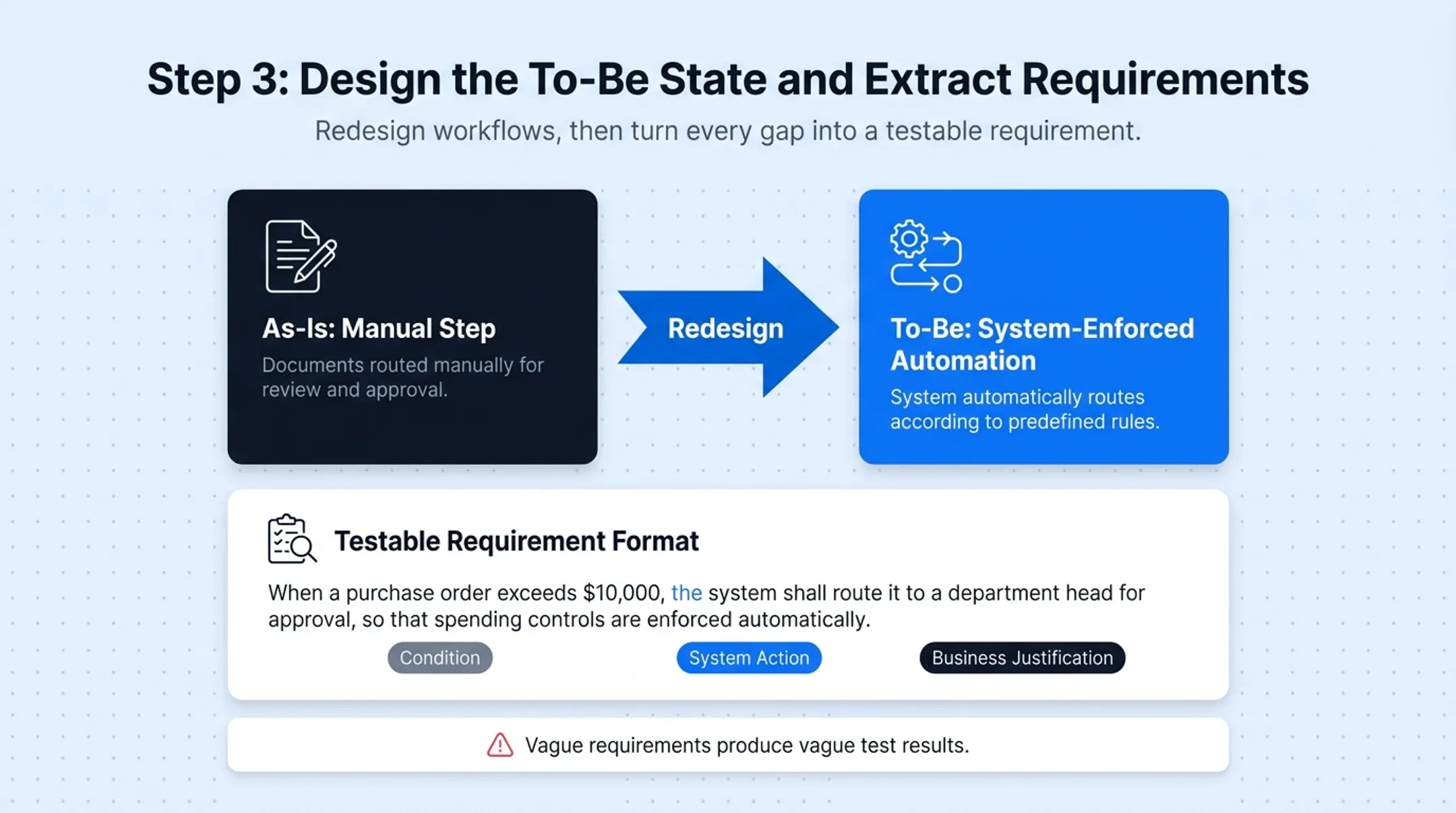

Step 3: Design the To-Be State and Extract Requirements
Redesign workflows with system-enforced automation replacing manual steps. Then convert every gap between as-is and to-be into a testable requirement, using a format like:

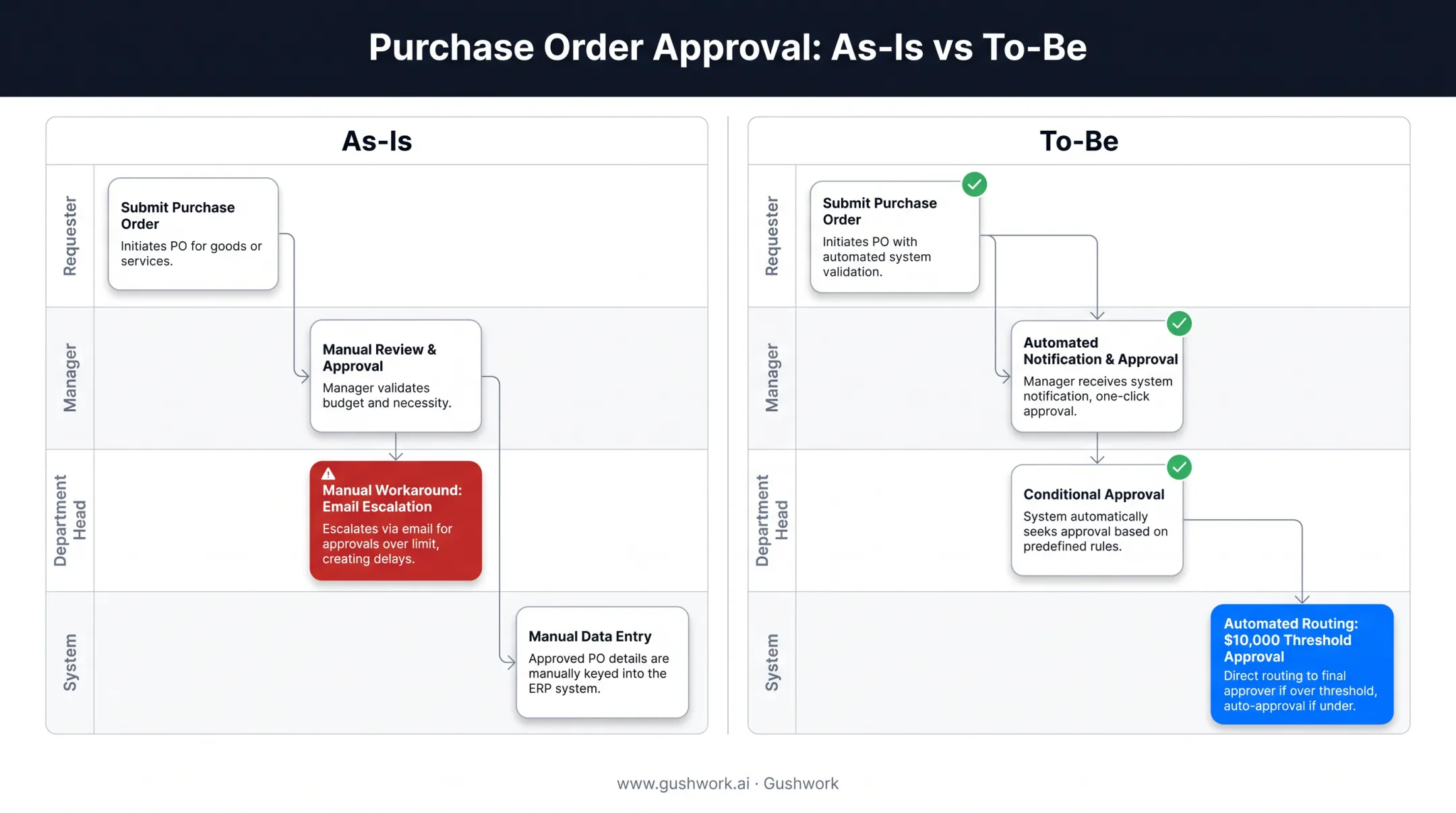

"When a purchase order exceeds $10,000, the system shall route it to a department head for approval, so that spending controls are enforced automatically."
This format matters because it's directly testable during UAT — vague requirements produce vague test results.
L1, L2, and L3 Process Maps in ERP Mapping

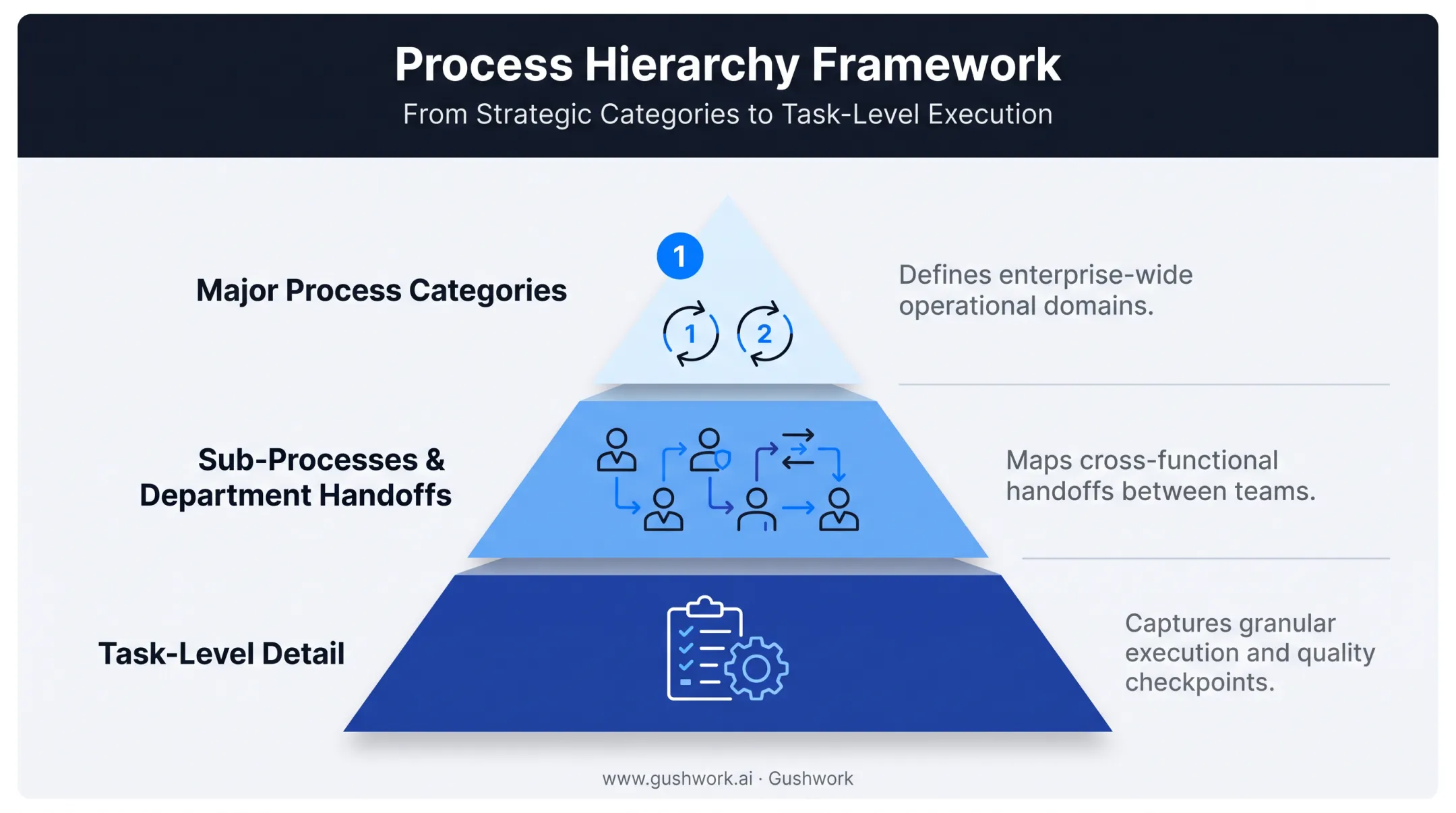

APQC's Process Classification Framework is a widely used structure for process hierarchy levels:

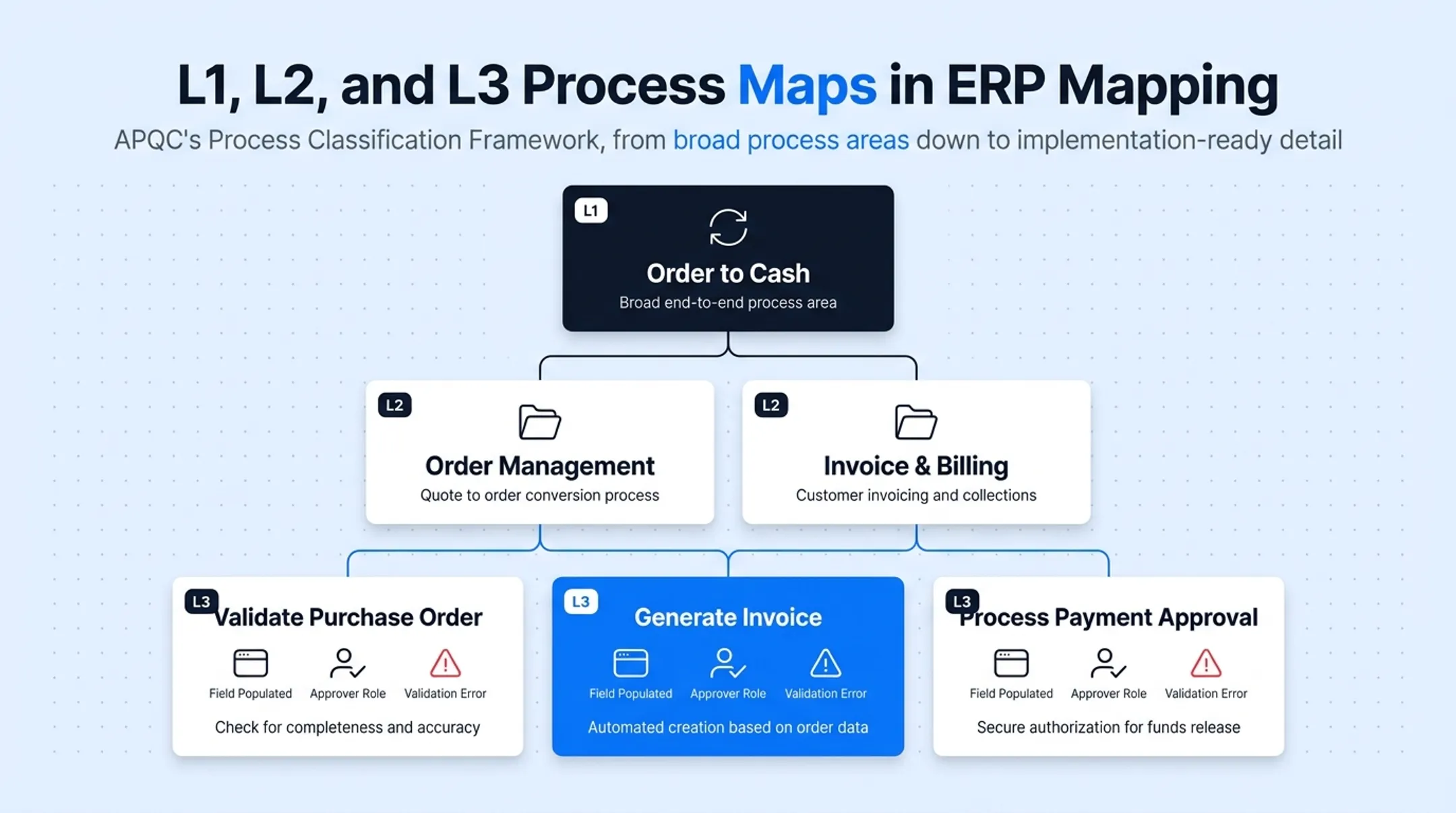

| Level | Scope | ERP Use |
|---|---|---|
| L1 | Major process categories (order-to-cash, procure-to-pay) | Sets overall ERP domain scope |
| L2 | Sub-processes within each L1 category, showing handoffs across departments | Defines process groups for requirements gathering |
| L3 | Task-level detail: individual actions, decision points, system interactions | Used directly for configuration and test scripts |
L3 maps are where the real implementation work happens. They're granular enough to hand directly to a configuration team or QA tester. Each map shows which field gets populated, which role approves what, and where the system should throw a validation error.
Where and When ERP Process Mapping Is Applied
Commonly mapped workflows:
- Order-to-cash
- Procure-to-pay
- Inventory management
- HR and payroll
- Financial close
- Project accounting

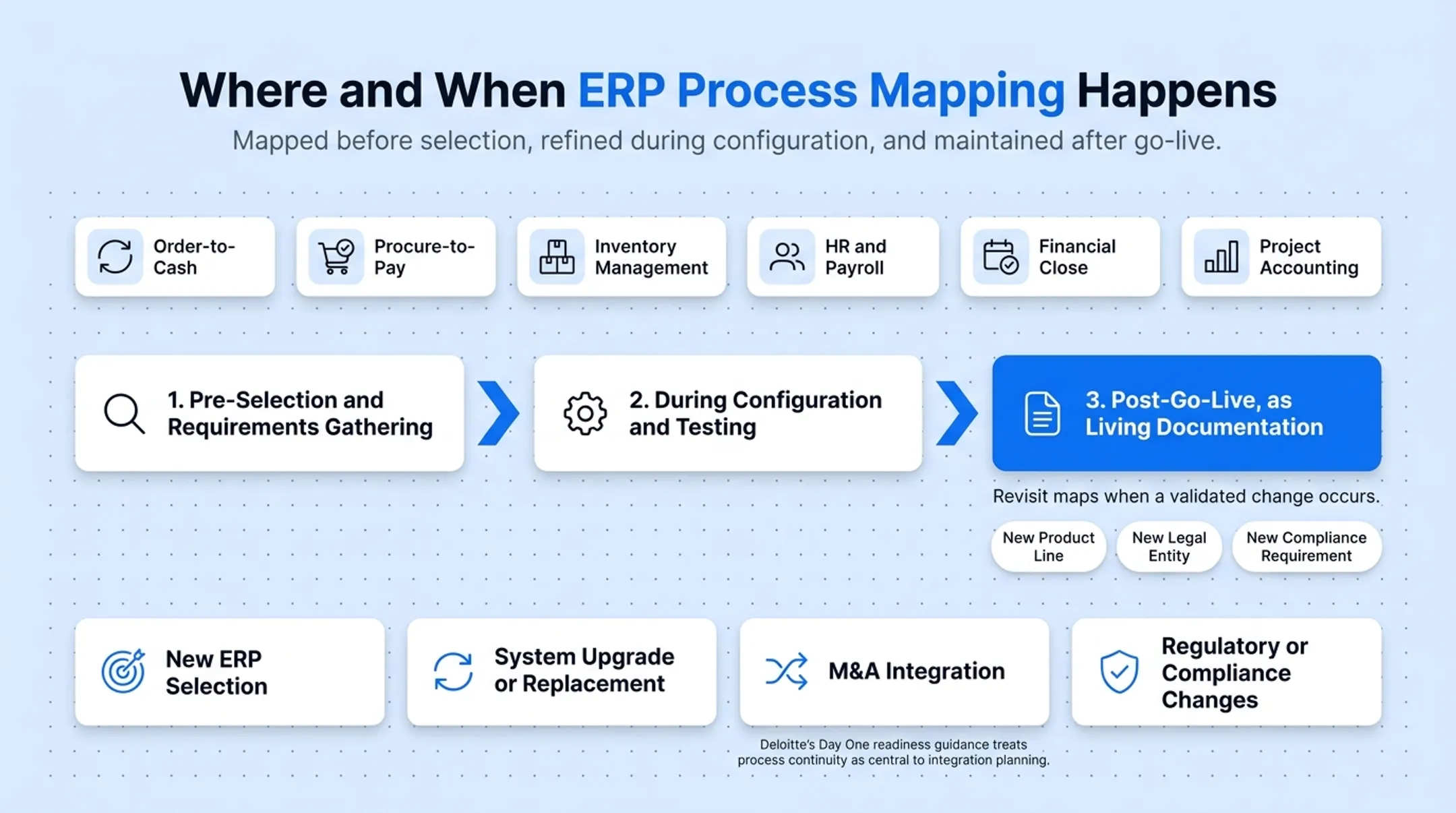

Points in the ERP lifecycle where mapping happens:
- Pre-selection and requirements gathering
- During configuration and testing
- Post-go-live, as living documentation
Typical triggers for a mapping project:
- New ERP selection
- System upgrade or replacement
- M&A integration (Deloitte's Day One readiness guidance treats process continuity as central to integration planning)
- Regulatory or compliance changes affecting controls and traceability
Mapping isn't a one-and-done deliverable. Maps should be revisited whenever a validated operational change occurs: a new product line, a new legal entity, or a new compliance requirement.
At Gushwork, our ERP Implementation Services start with this exact discipline. Process mapping and configuration run alongside data preparation, permissions setup, testing, training support, and phased rollout. Manufacturers and industrial distributors aren't left guessing what the new system will actually do until it's too late to fix cheaply.
Common Issues, Misconceptions, and When Mapping May Fall Short
Even well-intentioned mapping efforts run into predictable problems:
- Mapping only the happy path: ignoring exception paths that often account for a large share of real transactions
- Vague decision points: "manager approves" without specifying which manager, or under what conditions
- Over-engineering the to-be map: designing an ideal workflow that staff won't realistically adopt on day one
- Confusing the map with the system itself: a process map supports decisions; it doesn't execute them or monitor performance
- Skipping validation with actual process participants: signing off with managers alone, without confirming the map matches what frontline staff actually do
Managers describe the process they think happens. The person entering data every day knows the real one.
Conclusion
ERP business process mapping documents current and future workflows to define requirements that are specific, testable, and grounded in how work really gets done. The quality of that mapping work directly affects implementation cost, timeline, and whether your team adopts the new system.
Treat it as a continuous discipline, not a one-time document. Maps that stay current after go-live become working references for training, audits, and the next system change.
Frequently Asked Questions
What are the key steps for successful ERP implementation?
Successful implementations follow process mapping, requirements gathering, system selection, configuration, testing, training, and go-live support, roughly in that order. Skipping mapping early usually means costlier fixes during testing.
What are L1, L2, and L3 process maps and how do they relate to ERP mapping?
L1 covers major process categories, L2 breaks those into sub-processes and department handoffs, and L3 documents task-level detail used directly for configuration and testing. Most ERP requirements are extracted at the L3 level.
What are the top ERP systems?
Widely used platforms include SAP, Oracle NetSuite (distinct from Oracle Fusion Cloud ERP), and Microsoft Dynamics 365. The right choice depends on company size, industry, and existing systems, not a universal ranking.
What are the core ERP modules?
Common modules include finance/accounting, procurement, inventory and supply chain, manufacturing, CRM, and human resources. Not every edition includes every module, so mapping should confirm what's actually in scope.
What is the difference between an as-is and a to-be process map?
An as-is map documents current reality, including workarounds and undocumented exceptions. A to-be map reflects the redesigned workflow the new ERP will support, with automation replacing manual steps.
Why are swimlane diagrams recommended for ERP process mapping?
Swimlane diagrams organize steps by role, making handoffs and approval points immediately visible. That visibility makes it easier to spot bottlenecks and assign clear ownership before configuration begins.
