A visual warehouse management system (Visual WMS) fixes this by pairing graphic floor layouts, item photos, and real-time barcode data into one interface. Instead of decoding rows of alphanumeric codes, staff see a map, a photo, and a color-coded status the moment they need it.
This article covers what a Visual WMS actually is, its core components, the benefits worth measuring, how to roll one out, and the obstacles that trip up most implementations.
Key Takeaways
- Visual WMS pairs photo inventory, graphic layouts, and live scan data to remove guesswork from picking and putaway.
- Barcode-paired verification catches pick errors early and supports 99.5–99.9% order accuracy (ASCM).
- Rollouts range from 6 weeks for small operations to 12-24 months for complex, multi-site networks.
- Integration complexity and staff resistance are the top obstacles; both ease with planning and frontline buy-in.
What Is a Visual Warehouse Management System?
A traditional WMS tracks receiving, storage, picking, and shipping through text and numeric codes. A Visual WMS takes that same data and makes it visible: graphic maps of aisles and racks, item photos next to SKU numbers, and color-coded status indicators instead of a spreadsheet full of digits.

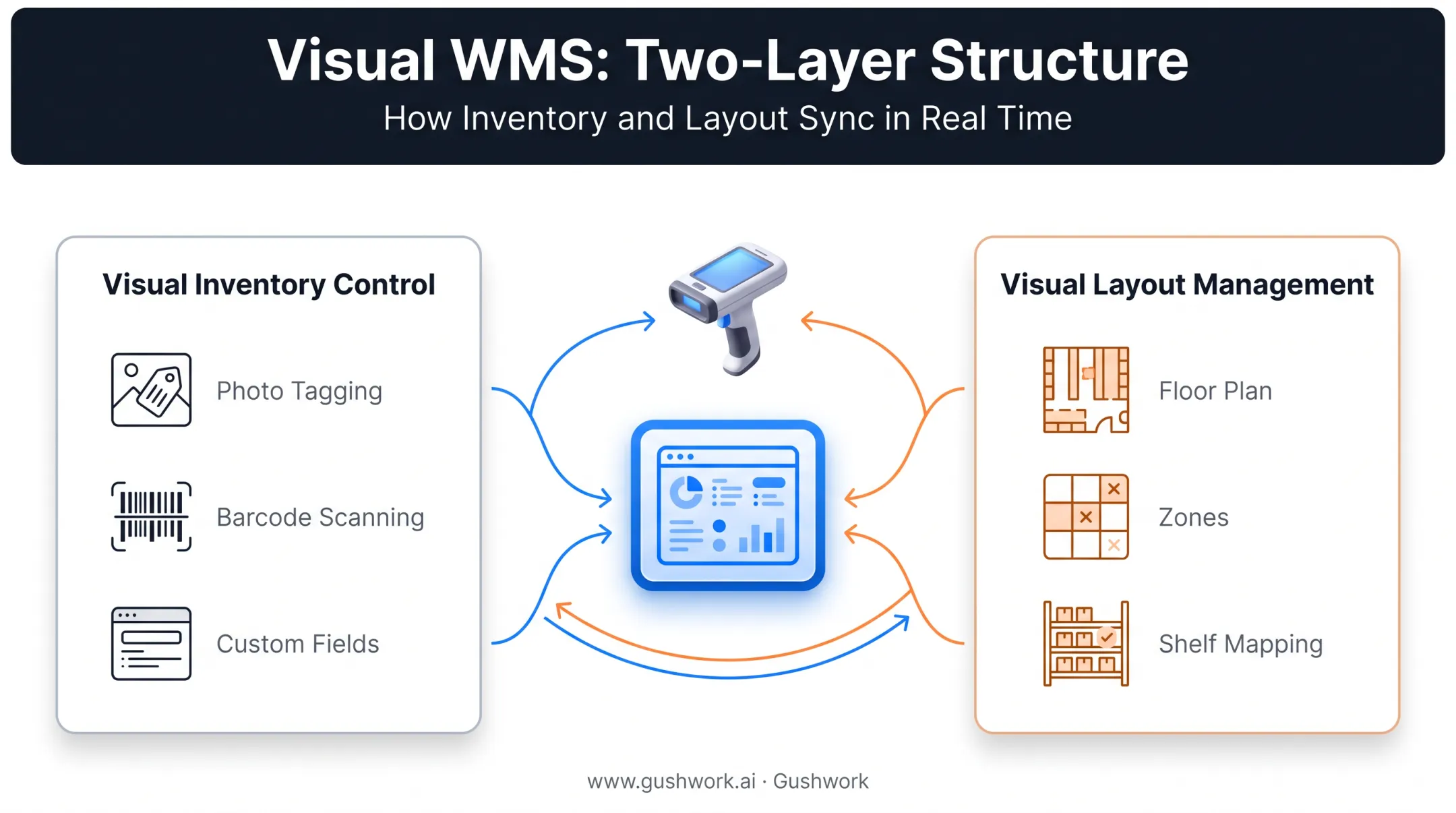

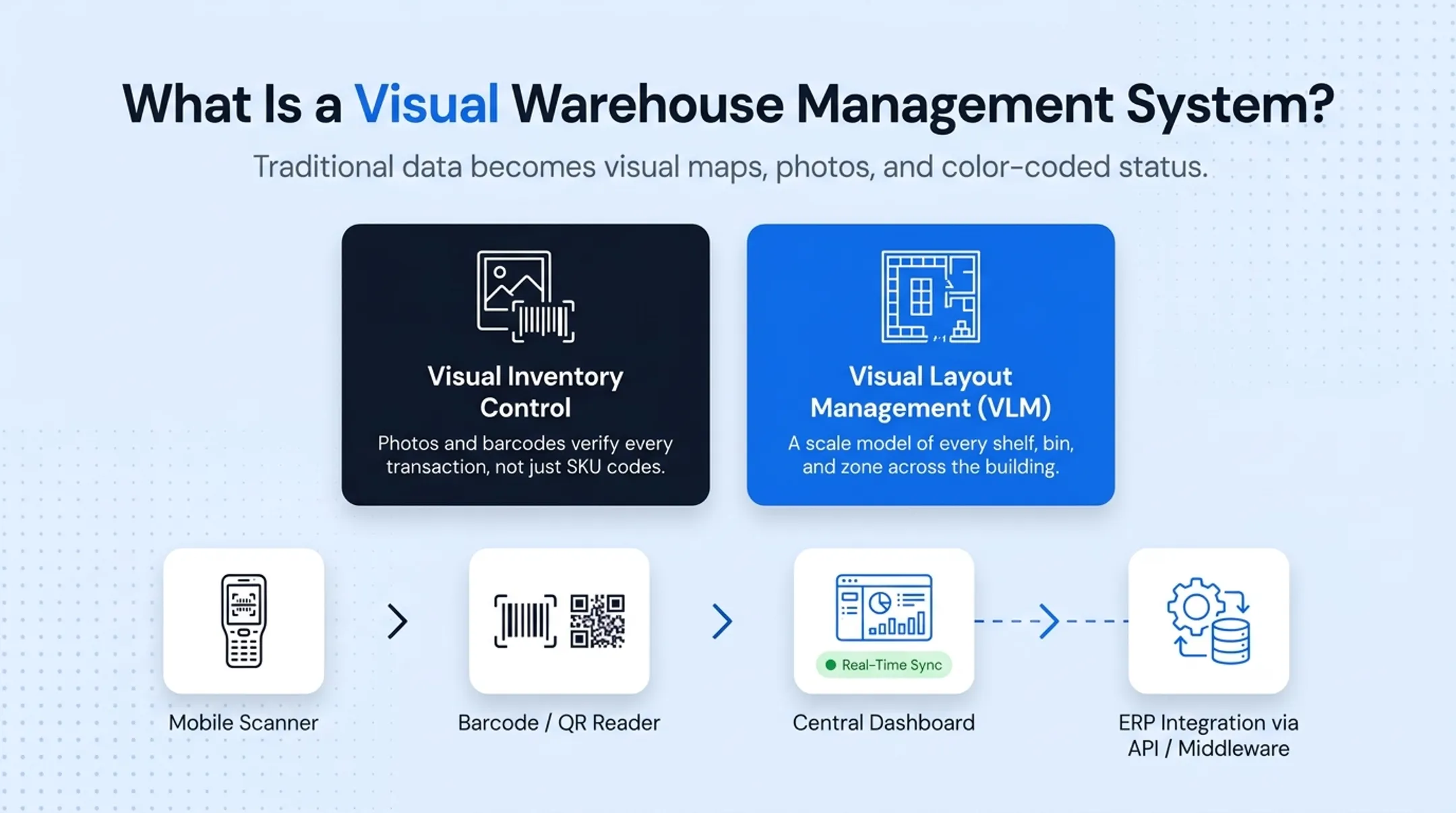

A Visual WMS has two distinct layers:
- Visual inventory control — verifying transactions using photos and barcodes. Users assign images and custom fields to items so a picker can confirm visually, not just by code.
- Visual layout management (VLM) — designing the actual floor plan. It acts as a scale model of every shelf, bin, and zone, showing where goods sit across the building.
The system pairs with mobile scanners and barcode/QR readers, syncing data into a central dashboard in real time. Unlike a purely text-based WMS, it prioritizes what people recognize at a glance: colors, shadow boards, and floor markings instead of rows of numeric records.
For larger operations, a Visual WMS does not have to stand alone. It can plug into an existing ERP through APIs or middleware, keeping the graphic front end while the ERP still handles financials and procurement.
Core Features and Components of a Visual Warehouse System
Visual Inventory Tracking
Photo-based cataloging lets a warehouse team tell nearly identical SKUs apart at a glance: think two connector parts that differ only in a small bracket. Items get tagged with images, barcodes, and custom fields, so verification happens visually instead of through a memorized code system.
Warehouse Layout Design Tools
Graphic layout designers let managers map zones, routes, and storage locations with drag-and-drop simplicity. Rather than a text list of bin locations, managers see a literal floor plan they can reorganize as volume or seasonality shifts.
Real-Time Data and Barcode Scanning

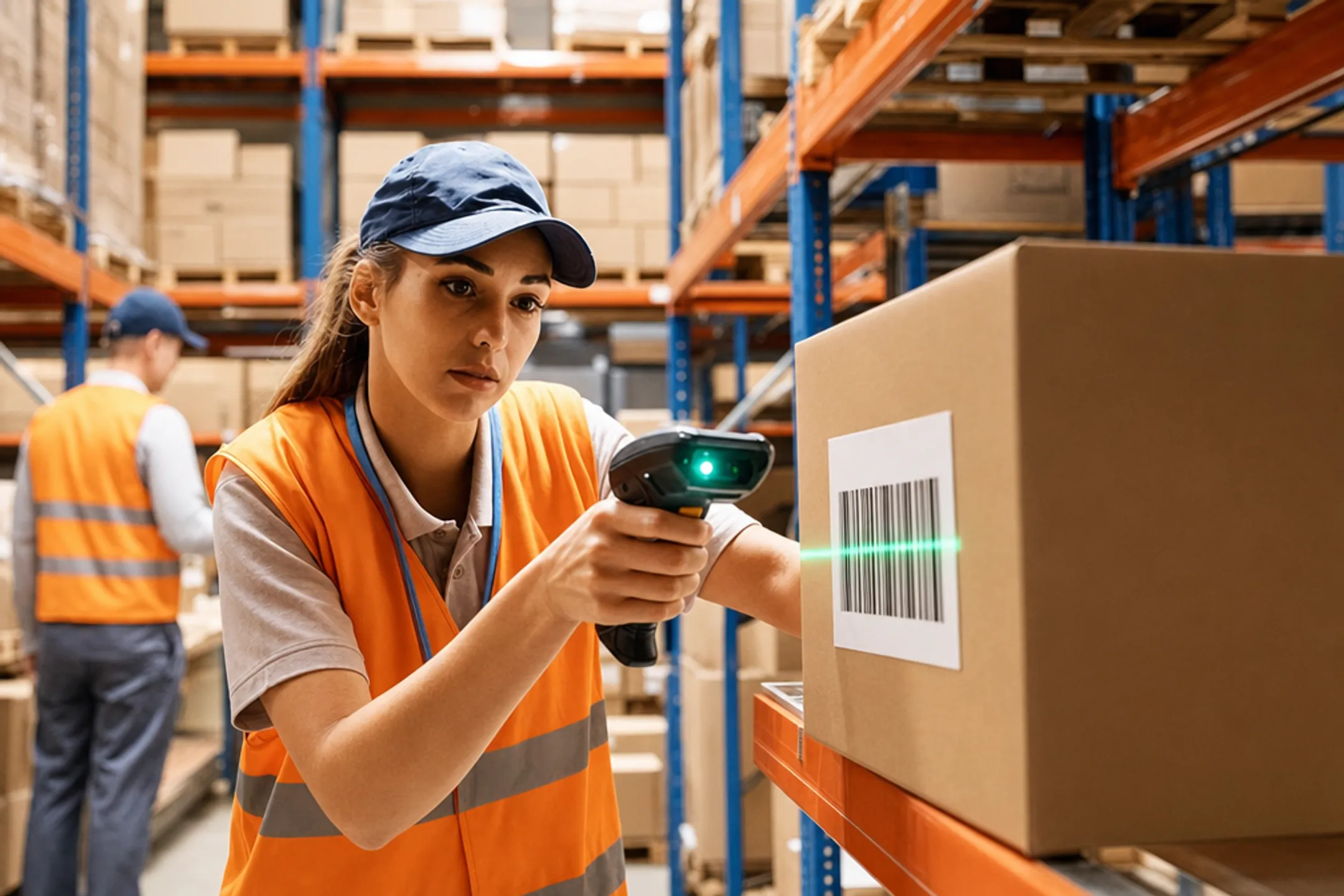

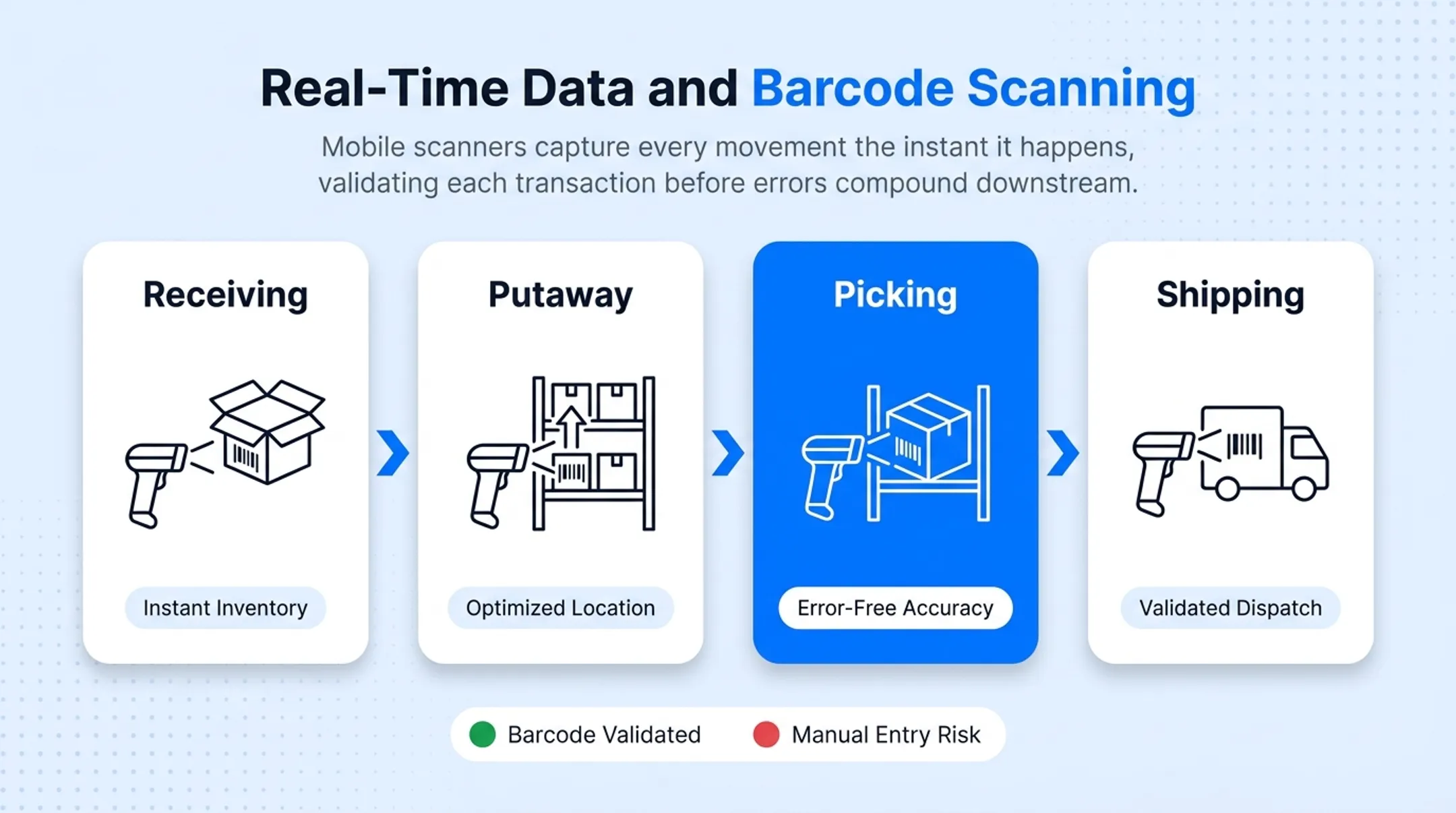

Mobile scanners capture every movement (receiving, putaway, picking, shipping) the instant it happens. Barcode scanning validates each transaction, preventing misplaced inventory and typo-driven entry errors from compounding downstream.
Visual Control Signals on the Floor
Physical controls matter as much as software:
- Shadow boards for tools and equipment
- Floor tape or paint marking walkways and hazard zones
- Labeled bins with color-coded status
- Posted SOPs at workstations
OSHA requires permanent aisles and passageways to be marked and kept clear, so these controls aren't just efficiency plays; they're compliance basics too, per OSHA regulation 1910.176.
Reporting and Analytics Dashboards

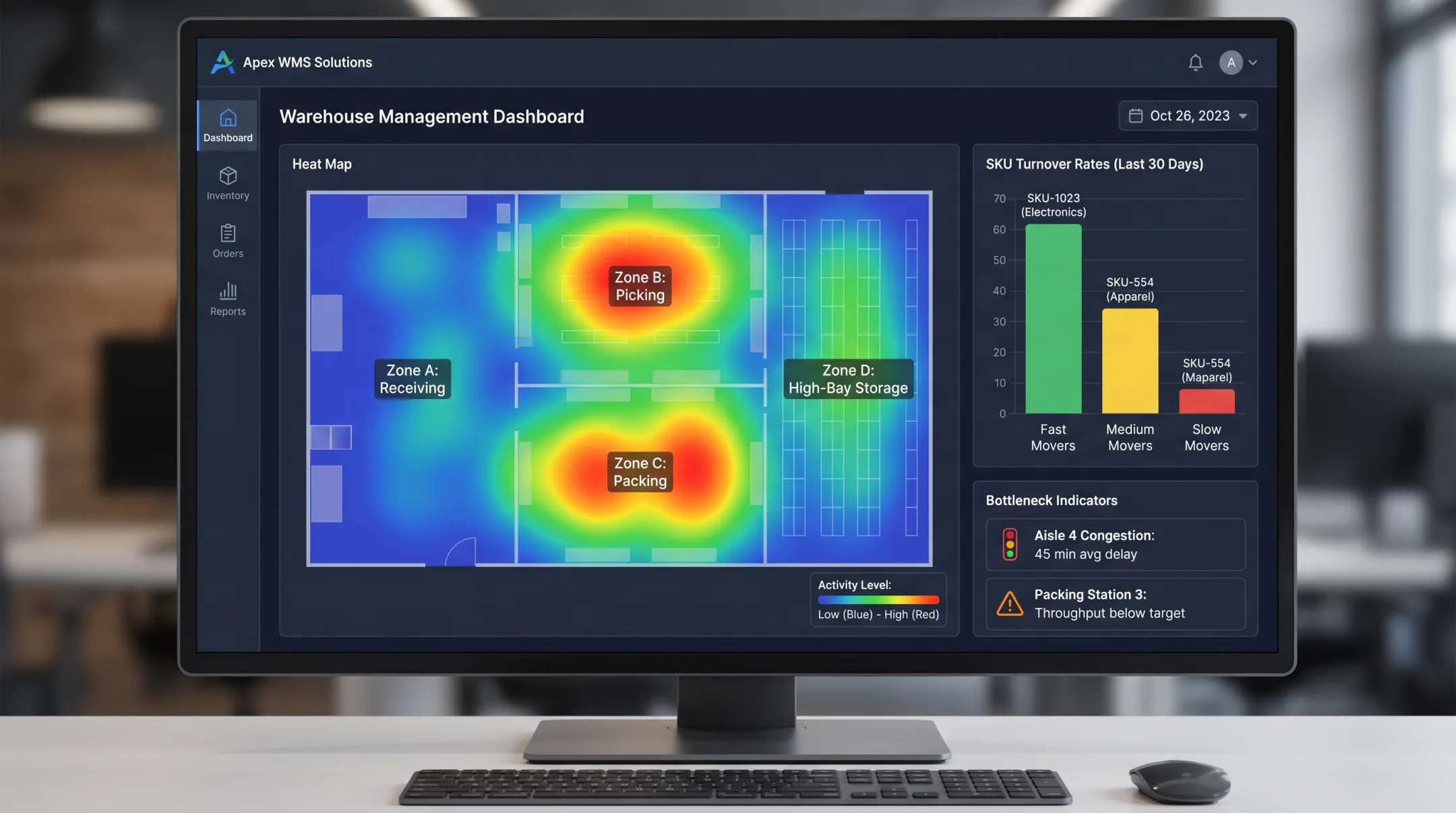

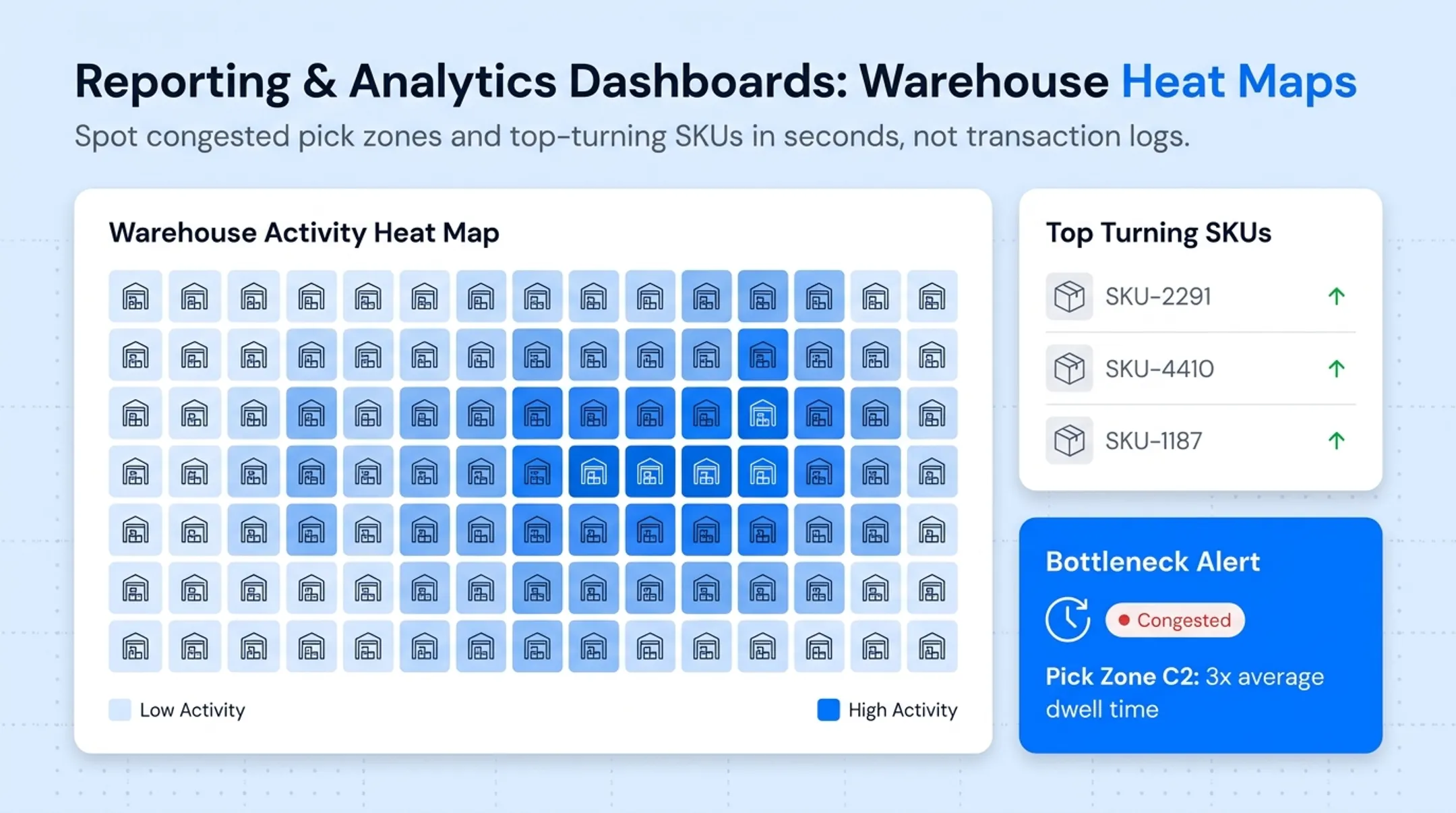

Heat maps reveal which zones see the most activity, which SKUs turn over fastest, and where bottlenecks form. Managers can spot a congested pick zone in seconds instead of digging through transaction logs.
Benefits of Implementing a Visual Warehouse Management System
When status is visible at a glance rather than buried in text, staff make decisions faster. That is the core of lean visual management. Barcode-paired verification adds a second check at every transaction point, supporting the 99.5-99.9% order accuracy top operators hit in best-in-class warehouses, per ASCM's KPI benchmarks.
The same visual layer strengthens training, safety, space use, and multi-site control:
- Faster onboarding: New hires don't need to shadow a veteran for weeks. Photos, color codes, and floor markings replace tribal knowledge that used to live in one person's head.
- Fewer safety incidents: Clear floor markings, labeled equipment, and organized walkways reduce everyday hazards from cluttered aisles and mislabeled zones.
- Better space utilization: A real map of shelf and bin capacity shows dead stock and underused zones instead of spreadsheet guesswork.
- Scalability across sites: A consolidated dashboard gives corporate teams visibility into multiple warehouses without a physical site visit.
How to Implement Visual Control in Your Warehouse

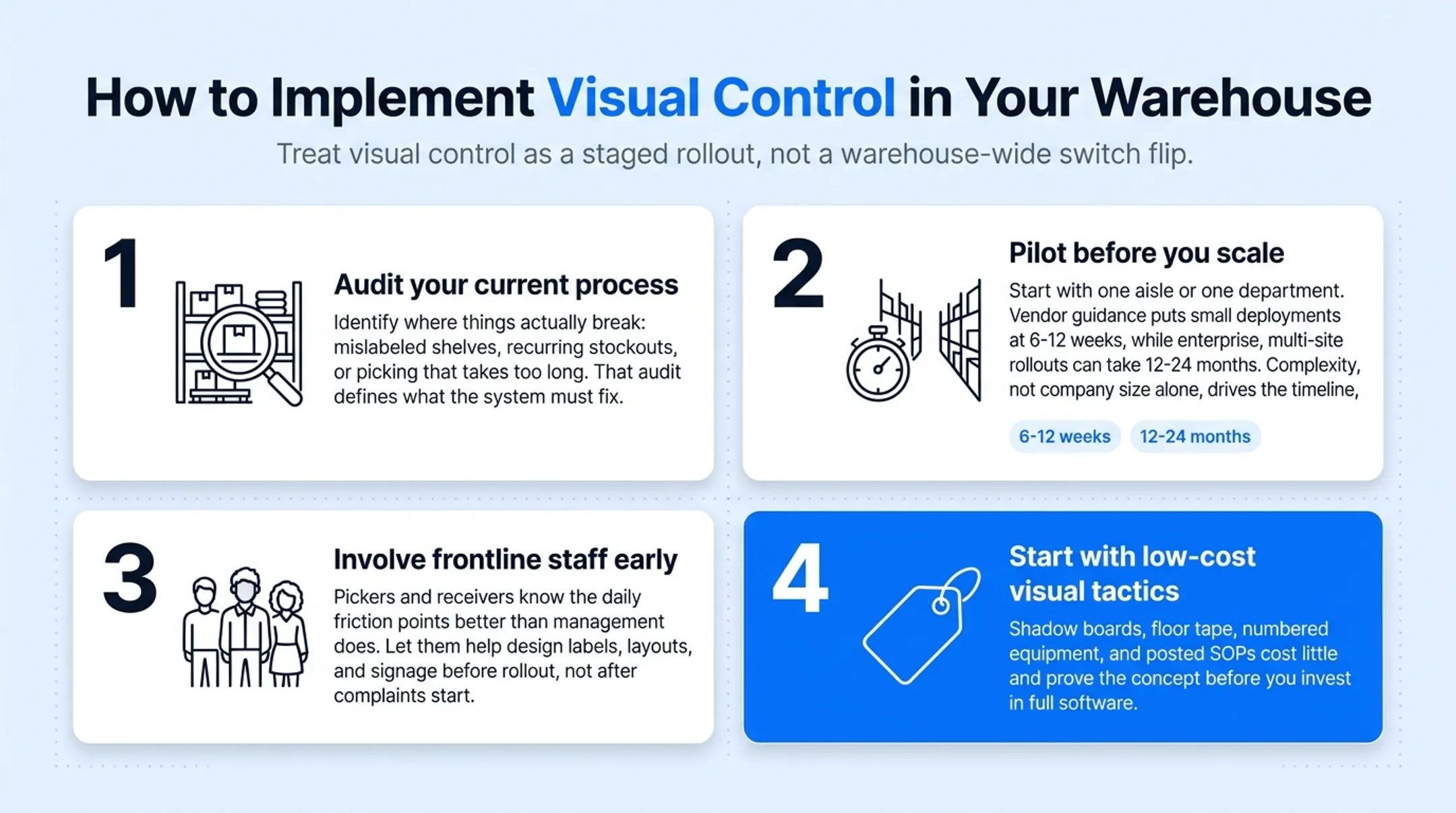

Treat visual control as a staged rollout, not a warehouse-wide switch flip. These four steps keep the project tied to real floor problems.
- Audit your current process. Identify where things actually break: mislabeled shelves, recurring stockouts, or picking that takes too long. That audit defines what the system must fix.
- Pilot before you scale. Start with one aisle or one department. Vendor guidance puts small deployments at 6-12 weeks, while enterprise, multi-site rollouts can take 12-24 months. Complexity, not company size alone, drives the timeline.
- Involve frontline staff early. Pickers and receivers know the daily friction points better than management does. Let them help design labels, layouts, and signage before rollout, not after complaints start.
- Start with low-cost visual tactics. Shadow boards, floor tape, numbered equipment, and posted SOPs cost little and prove the concept before you invest in full software.
Common Challenges and How to Overcome Them
Most Visual WMS rollouts hit the same friction points. Handle each one deliberately so the system sticks. Integration complexity. Connecting a Visual WMS to an existing ERP or e-commerce platform involves real data-compatibility and scalability work. Bring IT or the vendor’s support team in early rather than treating integration as an afterthought. Employee resistance. New systems change daily habits, and habits are sticky. Hands-on training paired with clear communication about why the change helps (fewer errors, less searching, safer aisles) moves adoption faster than a mandate ever will. Sustainment fade. A visual system without ongoing reinforcement reverts to old habits. Leadership needs named owners, periodic audits, and a habit of updating the map whenever locations shift. Buyer visibility. Stronger floor operations only help if procurement teams can find you. Most manufacturing buyers research suppliers online before they ever reach out, so component suppliers and equipment manufacturers still need to show up for the product and spec searches those buyers run. Operational upgrades and search visibility work best together. Gushwork supports industrial suppliers on both sides—Visual WMS implementation and integration, plus specification-matched pages that surface in those buyer searches.
SKU and KPI Basics for Visual Inventory Management
A SKU (Stock Keeping Unit) is the unique identifier a business assigns to a product. Visual systems pair each SKU with a photo, so staff can confirm an item is correct without decoding a code string.
KPIs worth watching on a visual dashboard:
- Inventory turnover: how often stock cycles through in a given period
- Order accuracy: ASCM benchmarks top performers at 99.5-99.9%
- Fill rate: percent of each order filled in full (97-98% is solid; below 94% usually flags a warehouse or replenishment issue)
Visual dashboards make these metrics scannable at a glance instead of requiring a report pull.
Frequently Asked Questions
What are SKU and KPI in inventory management?
A SKU is a unique product identifier a business assigns to track items. A KPI is a measurable performance metric, like turnover rate, order accuracy, or fill rate, used to gauge warehouse efficiency.
What is the difference between visual inventory and visual inventory control?
Visual inventory is a photo-based catalog of items. Visual inventory control goes a step further, verifying every stock transaction visually against barcodes and images before it's completed.
How long does it take to implement a visual warehouse management system?
Small, simple deployments can take 6-12 weeks. Larger, multi-site operations with more complexity typically need 12-24 months to fully roll out.
Can a visual WMS integrate with existing ERP or ecommerce platforms?
Yes. Most modern visual WMS tools offer integrations with ERPs, shopping carts, and shipping software through APIs or middleware.
What is VLM (Visual Layout Management)?
VLM is the layout-design component of a WMS. It graphically maps aisles, racks, bins, and routes, essentially acting as a scale model of the warehouse floor.
Do small warehouses need a visual WMS, or is it only for large operations?
Even small warehouses see fewer errors and faster picking with visual controls. The complexity of features needed simply scales with the size and volume of the operation.
