That's the job of a Warehouse Control System. It's the software layer that keeps automated equipment synchronized, so a pick doesn't sit waiting on a conveyor that's already backed up.
This article covers what a WCS actually does, how it differs from a WMS and WES, its core functions, the benefits it delivers, and the warehouse KPIs it's built to move.
Key Takeaways
- A WCS is real-time execution software that directs conveyors, sorters, and robots on the floor
- It sits between your WMS (inventory/orders) and physical automation, turning plans into machine-level instructions
- Implementing a WCS improves throughput, order accuracy, and floor visibility
- The five core warehouse processes show exactly where a WCS adds the most value
What is a Warehouse Control System (WCS)?
A WCS is software that takes tasks from a Warehouse Management System (WMS) and directs automated equipment such as conveyors, sorters, AS/RS units, AGVs, and robotic arms on exactly how and when to execute them.
Think of it as the traffic controller on the warehouse floor. The WMS decides what needs to happen; the WCS decides how the machines make it happen, keeping every piece of equipment synchronized instead of operating in isolation.

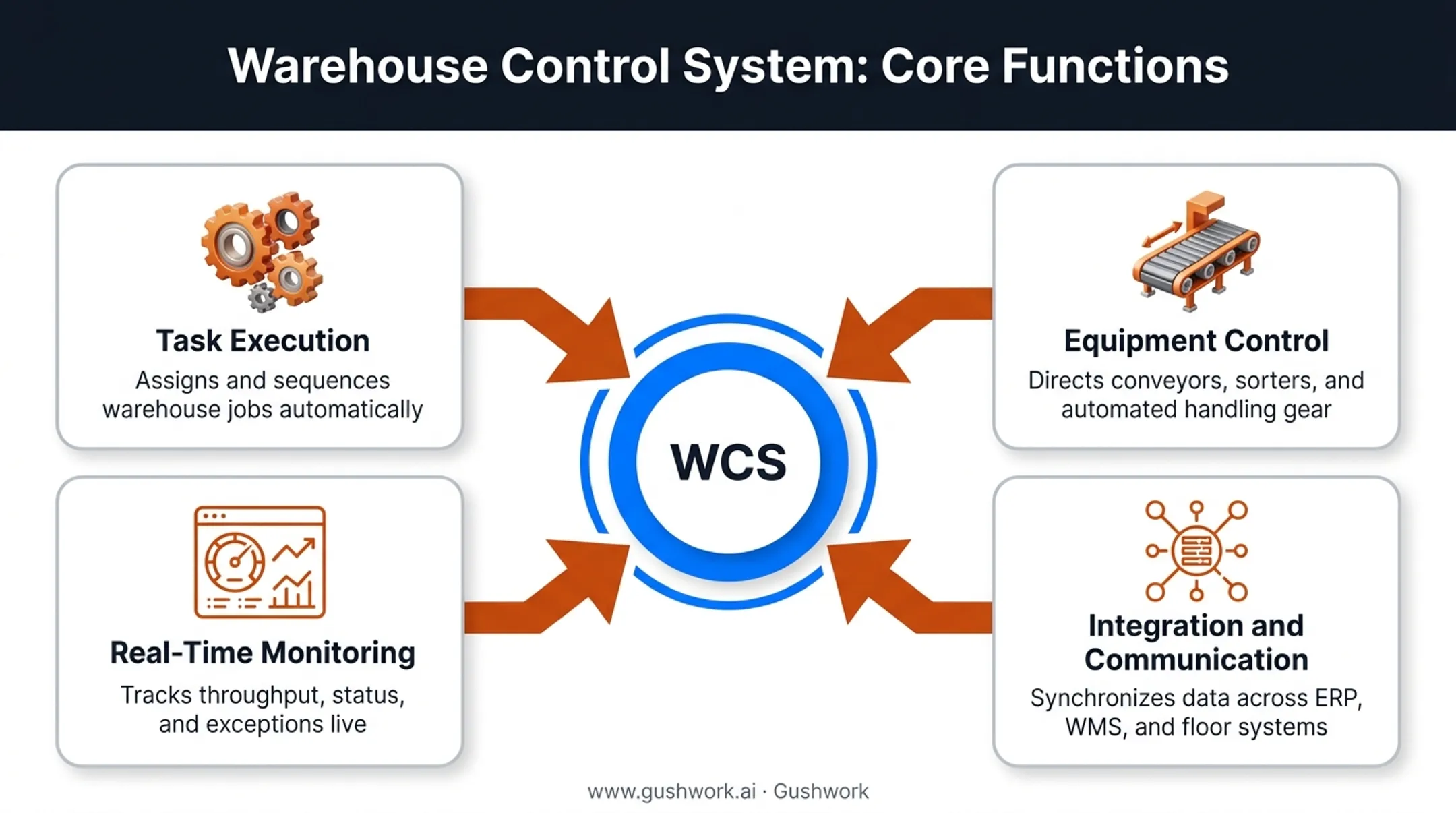

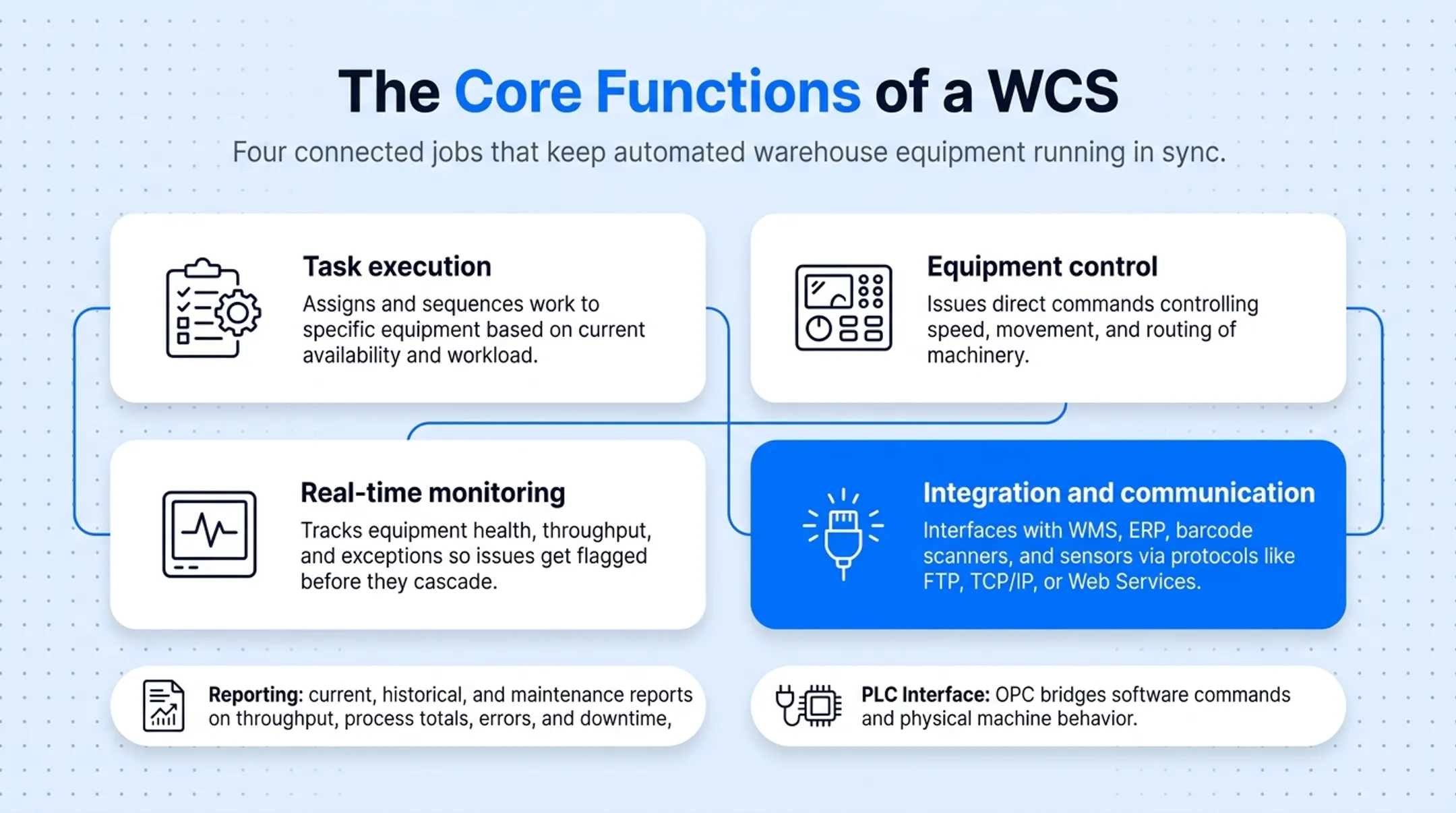

Core Functions of a WCS
A WCS handles four connected jobs:
- Task execution — assigns and sequences work to specific equipment based on current availability and workload
- Equipment control — issues direct commands controlling speed, movement, and routing of machinery
- Real-time monitoring — tracks equipment health, throughput, and exceptions so issues get flagged before they cascade
- Integration and communication — interfaces with WMS, ERP, barcode scanners, and sensors via protocols like FTP, TCP/IP, or Web Services
According to Hy-Tek's overview of WCS software, the system can also generate current, historical, and maintenance reports on throughput, process totals, errors, and downtime.
For direct communication with industrial controllers such as PLCs, OPC is a common interface that bridges software commands and physical machine behavior.

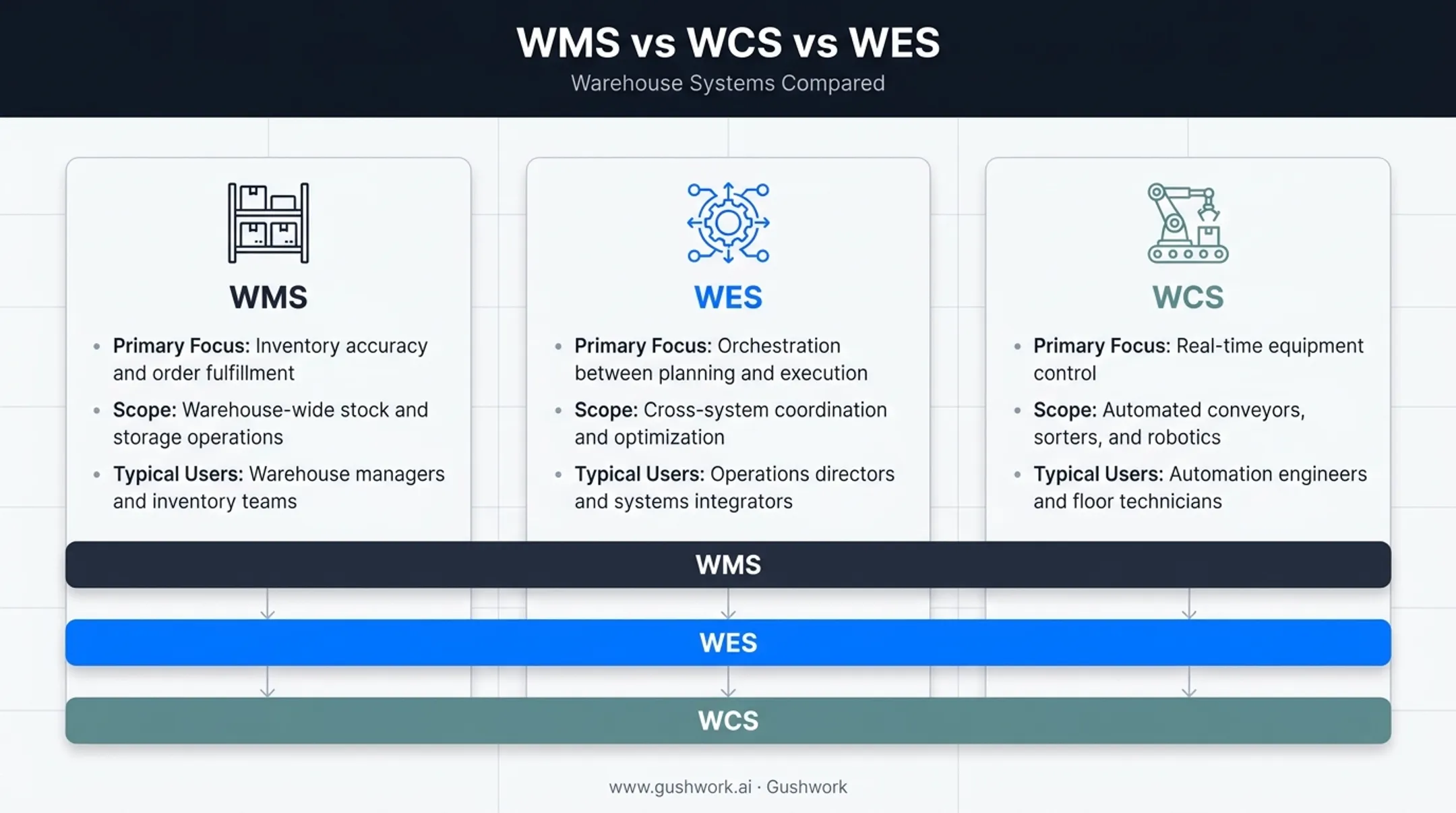

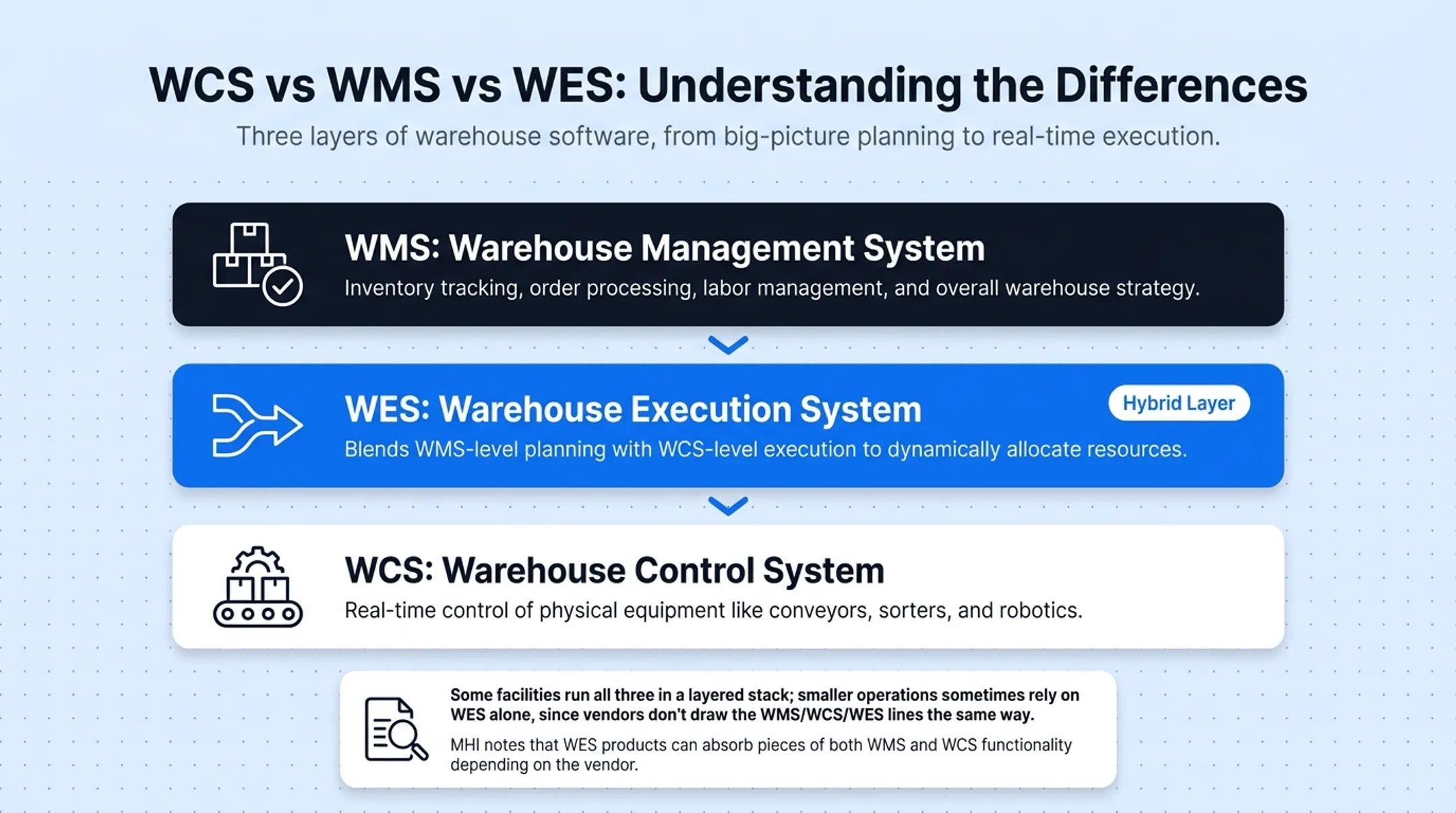

WCS vs WMS vs WES: Understanding the Differences
These three systems sit at different layers of warehouse software.
A WMS handles the big picture: inventory tracking, order processing, labor management, and overall warehouse strategy. A WCS operates one level below, focused purely on real-time control of physical equipment. A WES (Warehouse Execution System) acts as a hybrid, blending WMS-level planning with WCS-level execution to dynamically allocate resources.
| System | Primary Focus | Scope | Typical Users |
|---|---|---|---|
| WMS | Inventory and order management | Warehouse-wide operations | Operations managers, planners |
| WCS | Equipment execution | Floor-level automation | Automation/controls engineers |
| WES | Planning + execution hybrid | Balances workforce, orders, equipment | Ops leadership, integrators |
Some facilities run all three in a layered stack. Smaller operations sometimes rely on a WES alone, since vendors don't always draw the WMS/WCS/WES lines the same way. MHI's blog on warehouse execution software notes that WES products can absorb pieces of both WMS and WCS functionality depending on the vendor.
Business Benefits of Implementing a WCS
A WCS delivers gains operators feel on the floor:
- Operational efficiency: Dynamic task prioritization and workload balancing cut idle equipment time and clear bottlenecks before they slow the whole line
- Improved order accuracy: Tight coordination between picking, sorting, and packing reduces errors from equipment working off stale or conflicting instructions
- Real-time visibility: Managers get live data on inventory movement, equipment status, and productivity, so decisions happen in the moment instead of at end of shift
- Scalability: New equipment or automation "islands" can be added without ripping out the entire system
Those gains show up in hard numbers. Honeywell reported that a combined AS/RS and Momentum WES solution managed over 20,000 SKUs while delivering a nearly 40% throughput increase over traditional picking. That result came from the equipment-plus-software combination, not software alone, but it shows what's possible when execution software and automation work in lockstep.

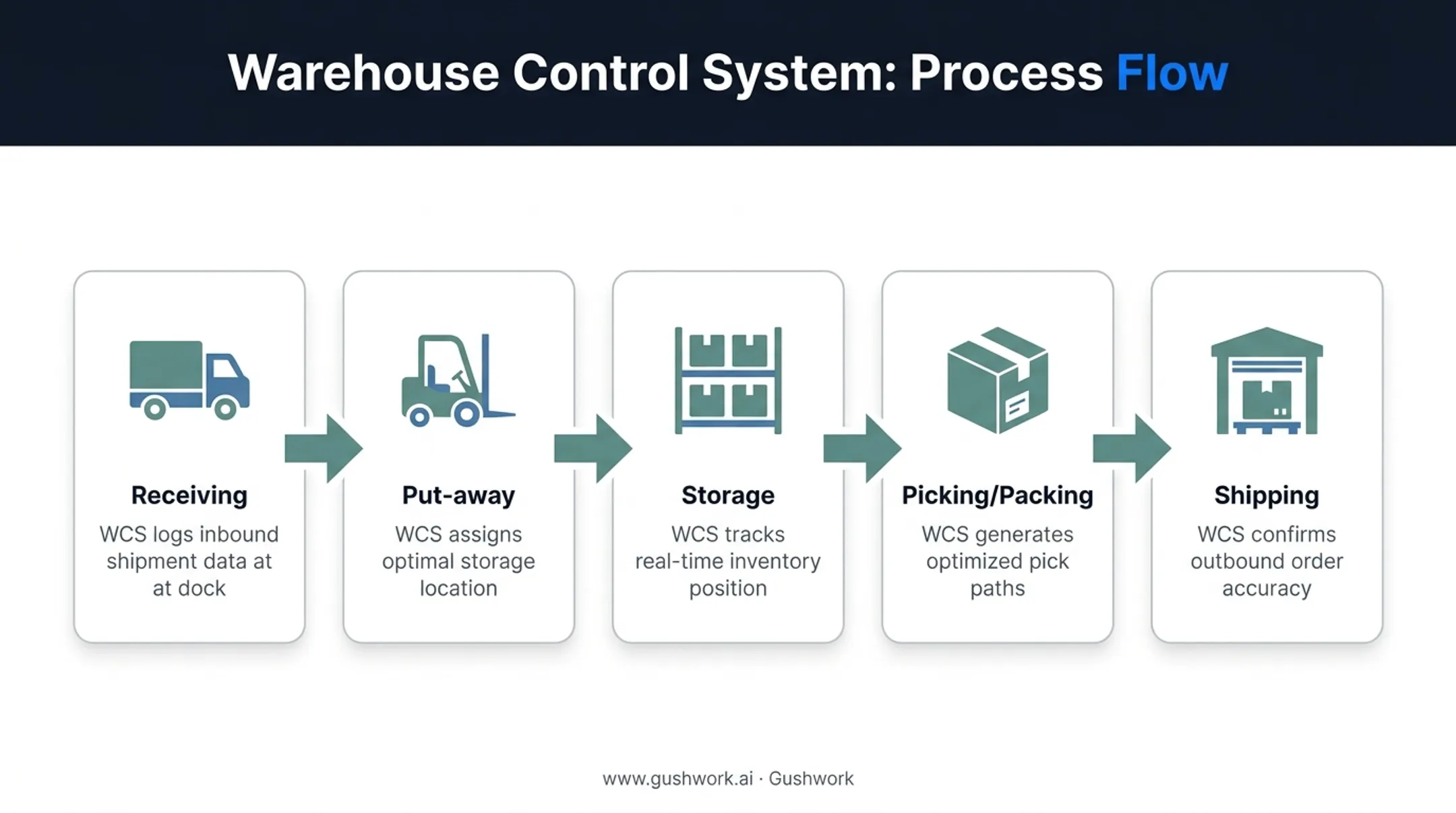

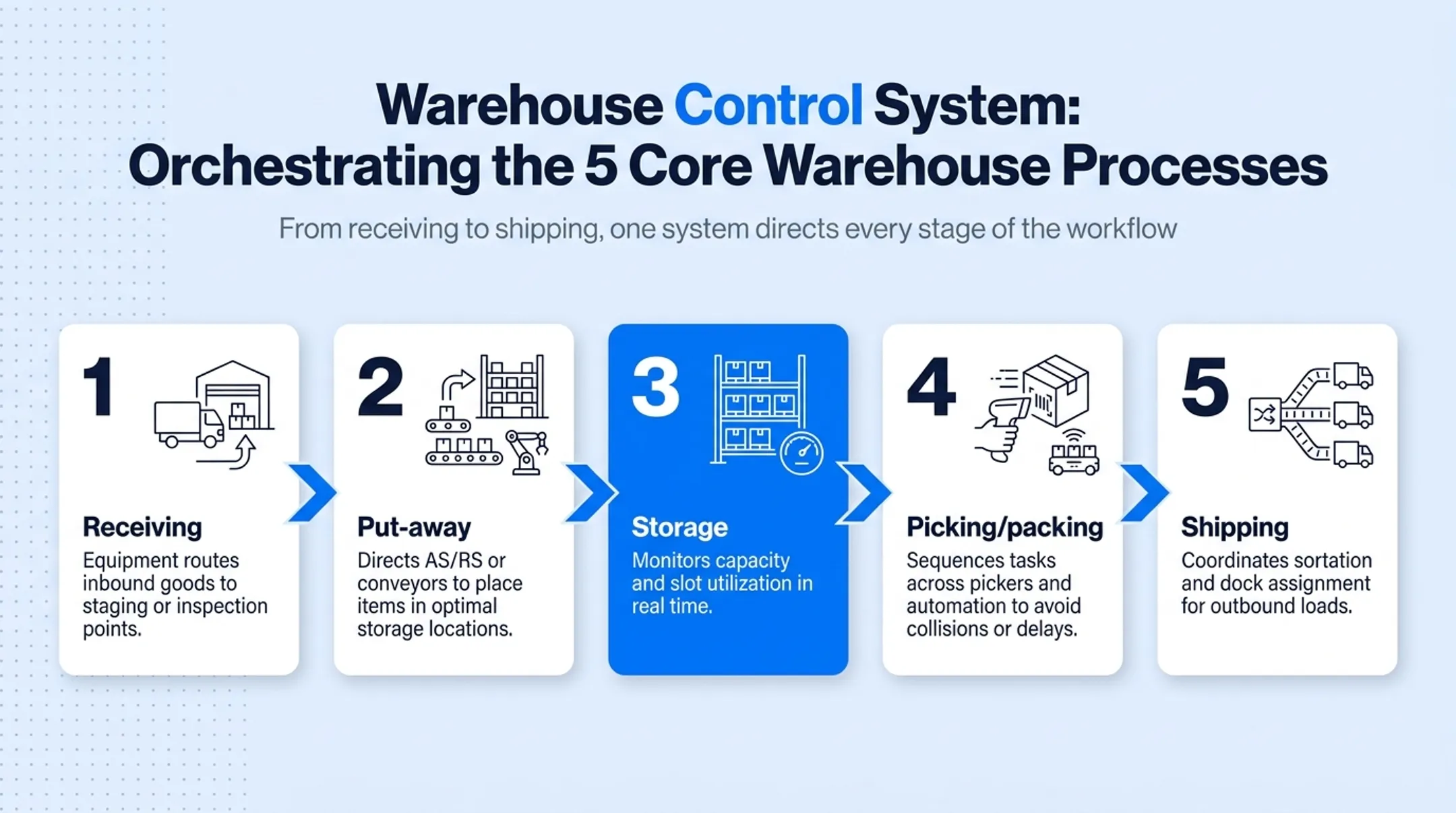

Five Main Warehouse Processes, Key KPIs, and the 5S Rule
A WCS touches every stage of the standard warehouse workflow:
- Receiving — equipment routes inbound goods to staging or inspection points
- Put-away — directs AS/RS or conveyors to place items in optimal storage locations
- Storage — monitors capacity and slot utilization in real time
- Picking/packing — sequences tasks across pickers and automation to avoid collisions or delays
- Shipping — coordinates sortation and dock assignment for outbound loads
KPIs Worth Tracking
- Order accuracy rate — ASCM's best-in-class target sits at 99.5%-99.9%, per its 8 KPIs for an Efficient Warehouse guide
- Order cycle time — time from order receipt to shipment readiness
- Inventory turnover — how often stock cycles through in a given period
- Equipment/dock utilization — how much of your automation capacity is actually working versus idle

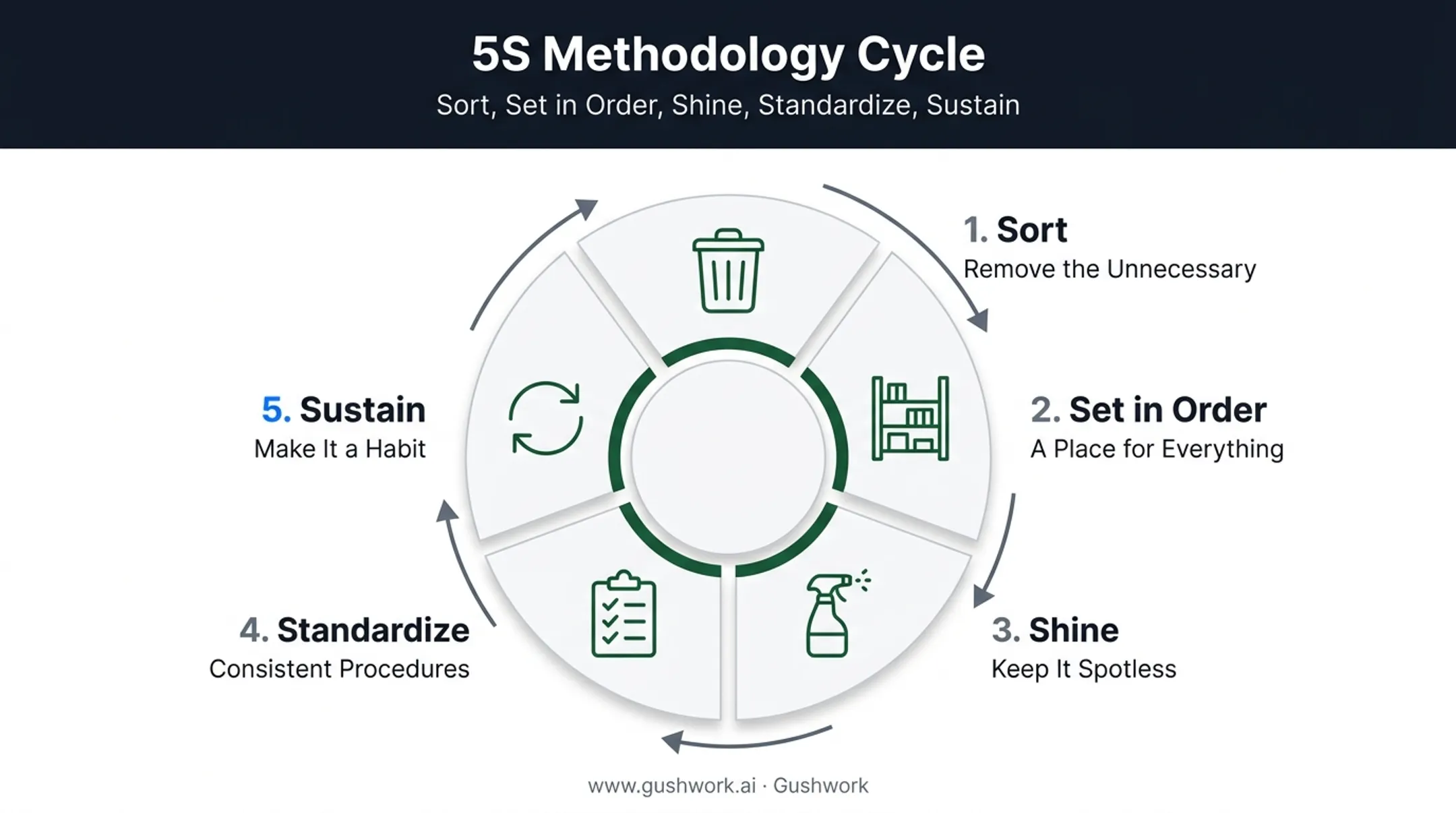

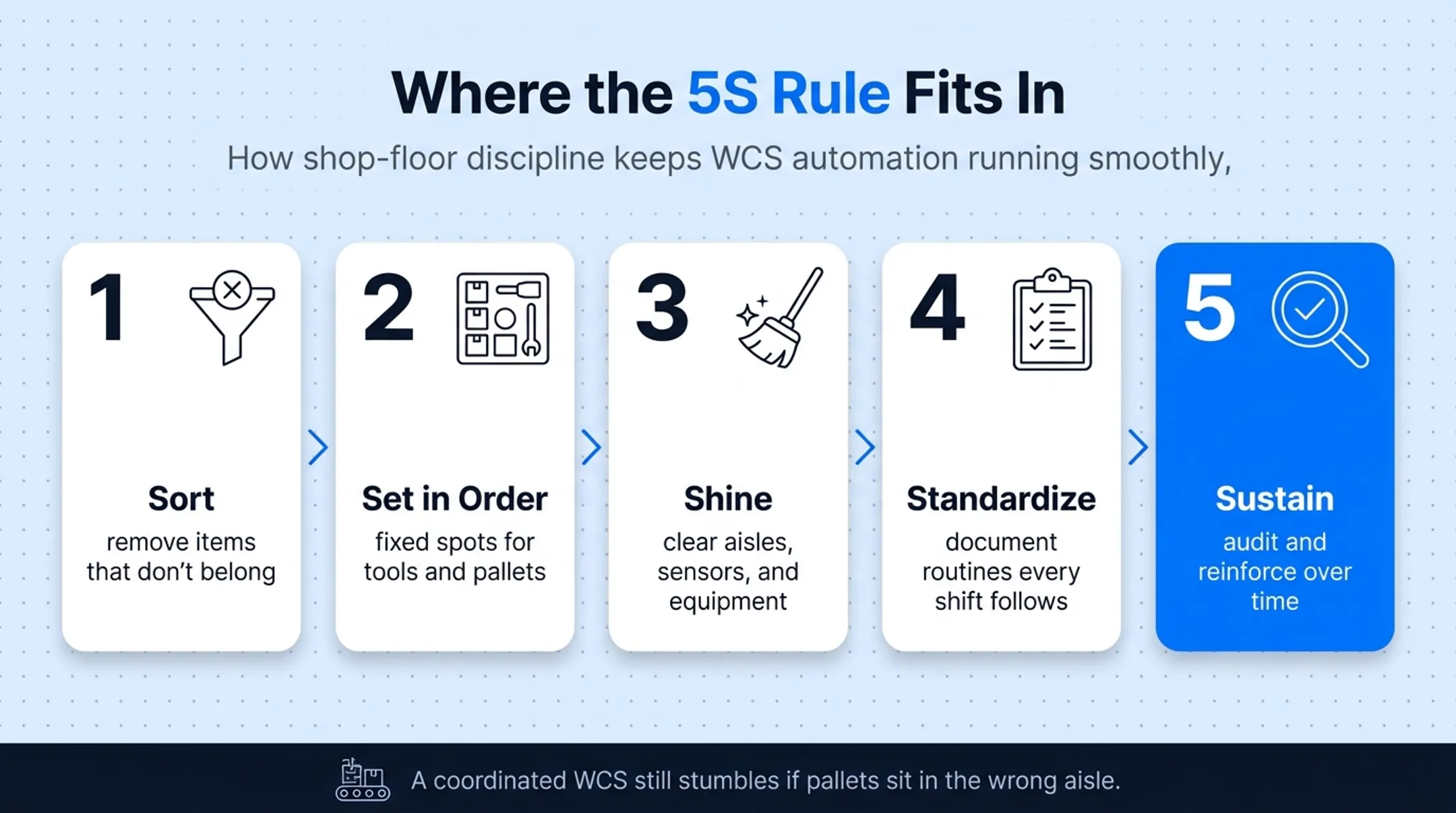

Where the 5S Rule Fits In
The 5S rule complements WCS automation by keeping the physical floor organized enough for machines to run efficiently:
- Sort — remove items that don't belong in the work area
- Set in Order — assign fixed locations for tools, pallets, and materials
- Shine — keep aisles, sensors, and equipment clear of debris
- Standardize — document layouts and routines so every shift follows the same rules
- Sustain — audit and reinforce the standards over time
A perfectly coordinated WCS still stumbles if pallets sit in the wrong aisle or tools clutter a conveyor line. 5S keeps the floor predictable so automation can execute the plan the software sends.
Choosing and Implementing the Right WCS
Before selecting a system, evaluate:
- Product types handled — fragile goods, bulk items, or mixed SKUs need different equipment logic
- Facility size and layout — a single-floor distribution center (DC) and a multi-level facility have very different routing needs
- SKU count and order volume — higher complexity demands more sophisticated task sequencing
- Labor force — the mix of automated versus manual work shapes task assignment and exception handling
- Budget — cover upfront licensing plus ongoing integration, support, and upgrade costs
Prioritize scalability. A system sized only for today's equipment count will need replacing as soon as you add a second conveyor line or a robotic picking cell.
Pilot before a full rollout. Integrate the WCS with one automation island—a single conveyor or sorter—first. That limits risk and surfaces integration issues while the stakes are still small.
Frequently Asked Questions
What is a warehouse control system (WCS)?
A WCS is software that coordinates automated equipment like conveyors, sorters, and robots in real time. It sits between the WMS and the physical floor, translating high-level orders into machine-level actions.
What does a warehouse control system (WCS) do?
A WCS executes tasks, controls equipment speed and routing, and monitors performance in real time. It also integrates with WMS, ERP, and floor-level sensors so operations stay synchronized.
What is the difference between a warehouse control system (WCS) and a warehouse management system (WMS)?
A WMS manages inventory, orders, and overall strategy. A WCS handles real-time execution, directly controlling the equipment that carries out those orders on the floor.
What are the most important KPIs for a warehouse?
Order accuracy rate, order cycle time, inventory turnover, and equipment or dock utilization are the top metrics most operations track to gauge efficiency.
What are the five main processes in a warehouse?
Receiving, put-away, storage, picking/packing, and shipping form the core workflow that a WCS coordinates across every stage.
What is the 5S rule in warehousing?
Sort, Set in Order, Shine, Standardize, and Sustain: a system for removing clutter, organizing tools, cleaning workspaces, and keeping those habits in place long-term.
